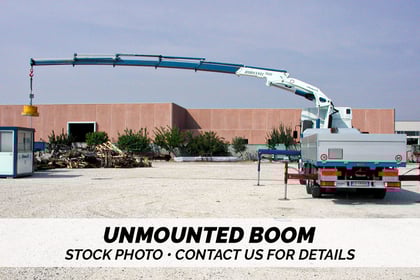

New Cormach 22500 E3 A.S.C. Plus

Stock # BM-4604
Available

Contact For Price/Rate

Request a quote

Features and Options

Features

Technical Specifications: Static moment at the turret pin: 22000 (daN/m), 159160 (lbs/ft) Hyd. boom length: 13700 (mm), 44' 11" (in) Length: 910 (940) (mm), 2' 12" (3' 1") (in) Width: 2500 (mm), 8' 2" (in) Height: 2287 (mm), 7' 6" (in) Weight (without oil and fitting): 2960 (kg), 6526 (lbs) Lifting capacity: 8400 (kg), 18519 (lbs) Boom length with manual extensions: 15840 (mm), 51' 12" (in) Slew torque: 2600 (daN/m), 18810 (lbs/ft) Slewing speed: 360 - 40 (° – sec), 360 - 40 (° – sec) Outriggers extension: 1850 + 1600 (mm), 6' 1" + 5' 3" (in) Outriggers width: 5830 (mm), 19' 2" (in) Pump delivery: 45 (lit/min), 11,9 Pressure: 300 (bar), 4270 (Psi) Oil tank capacity: 140 (lit), 37 (us gal)

Product Specs

  • Location : Kansas City, KS
  • Ton-Meters : 22.00
  • Ton Rating: 9.25
  • Boom (ft) : 44
  • Type : Knuckle Boom Cranes
