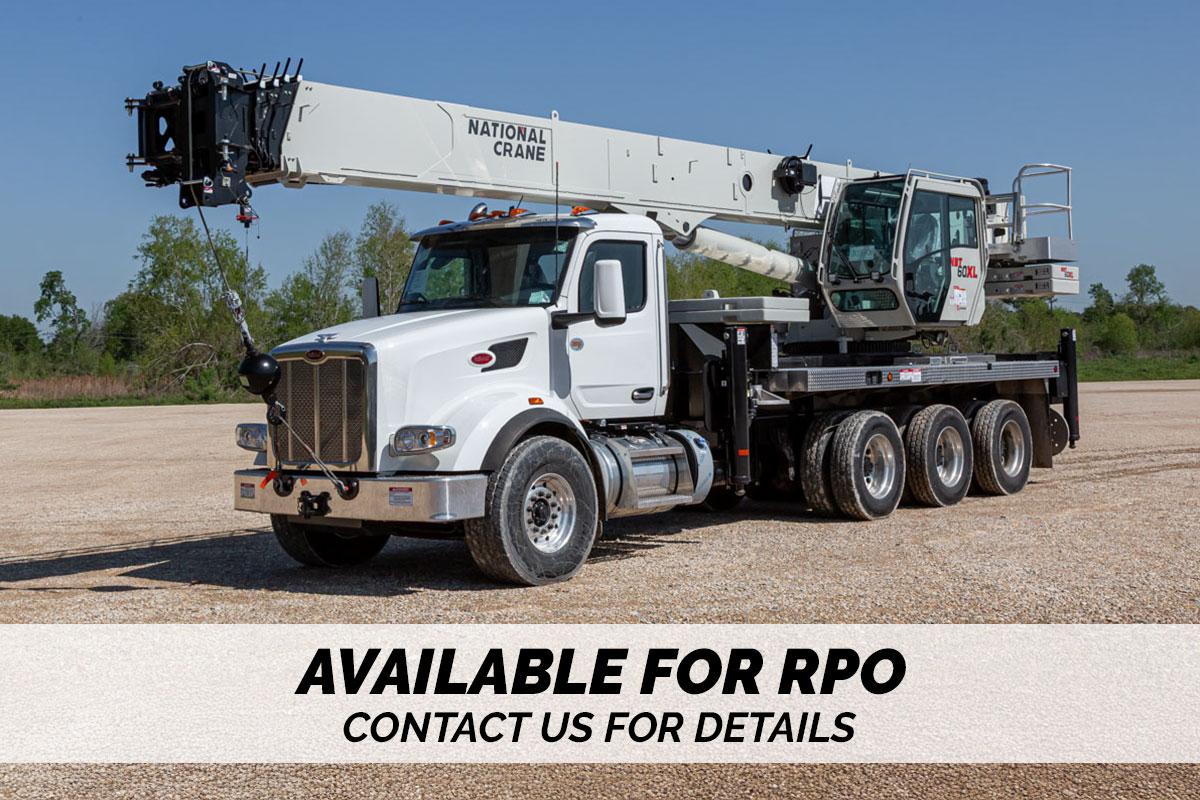

New National NBT60XL on New Peterbilt 567

Stock # BM-5203
Available

Contact For Price/Rate

Request a quote

Features and Options

Features

The NBT60XL provides the best possible capacity and reach combination of any 60 ton crane on the market, boom truck or truck crane, all while maintaining easy to road characteristics. Description - Five-section full power 151 ft boom minimizes the need to swing a jib for faster setup and productivity - Optional 36 ft fixed offsettable lattice jib with three positions (0, 15 or 30 degrees) - Up to 16,000 lbs of hydraulically removable counterweight for both high capacity and roading flexibility - Operator focused design: 20-degree tilt cab with heated seat, Bluetooth/AM/FM radio, graphical RCL, dual axis electronic joysticks, and optional camera system - Available NTC Performance package with 4-position outriggers, integrated cameras, and wireless windspeed indicator

Included Options

60 ton (54,4 mt) capacity: 360o stable standard configuration. 36 ft (11 m) fixed length lattice jib offsettable at 0 and 30 (side fold for stowing) Yoke style, 72 in x 36 in (1829 mm x 914 mm) steel platform, gravity hung with cylinder brake lock Headache Ball (Recommended with jib and/or aux winch option) - for 7 ton (6,35 mt) Non supply of 20 ton (18,1 mt) single sheave hook block STANDARD MOUNTING Hot shift PTO in lieu of standard air shift PTO (required on automatic transmissions) (factory mounts only) Clockwise rotation pump (Automatic Transmission ) Drive line kit to remote mount pump. Provide 24" (609 mm) dia. aluminum outrigger pads in lieu of the standard polymeric pads. Wind speed indicator - wireless
VIEW LOAD CHART

Product Specs

  • Location : Houston, TX
  • Ton-Meters : 0
  • Ton Rating: 60
  • Boom (ft) : 151
  • Type : Boom Trucks
  • Engine : Cummins ISX15
  • Horsepower : 500
  • Transmission : Allison Automatic 6SP
  • Suspension : NeWay ADZ Air Ride
