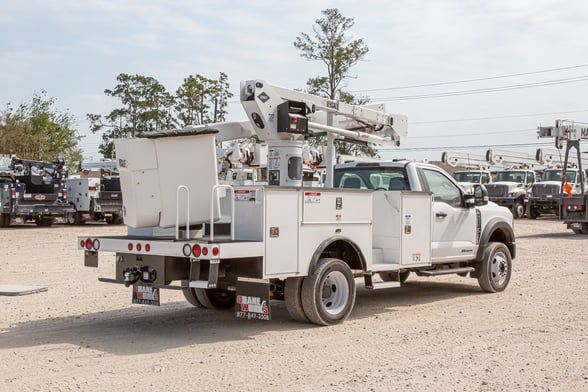

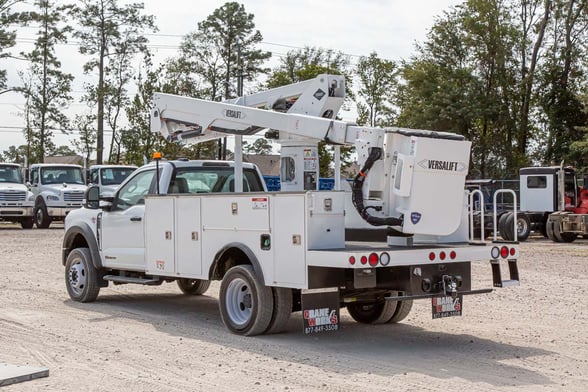

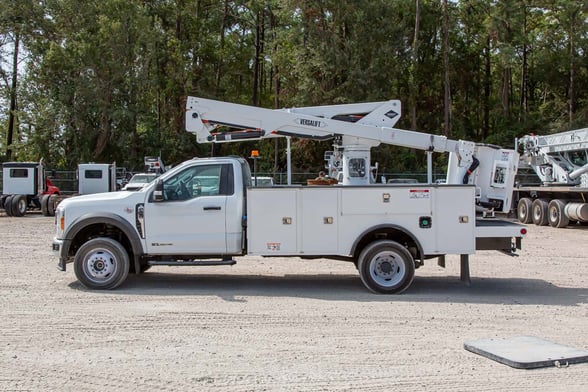

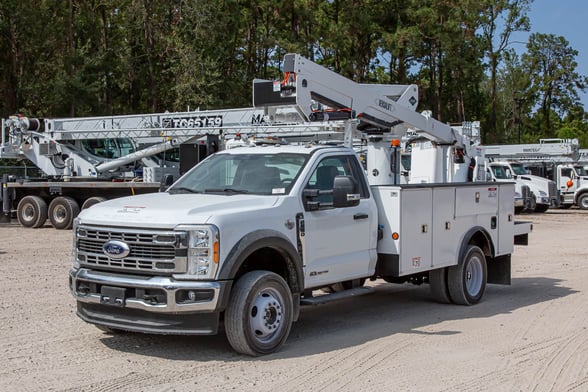

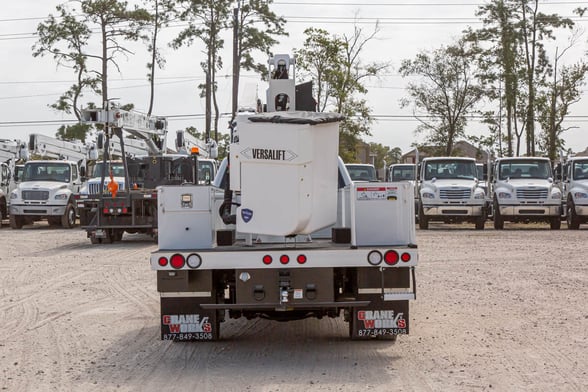

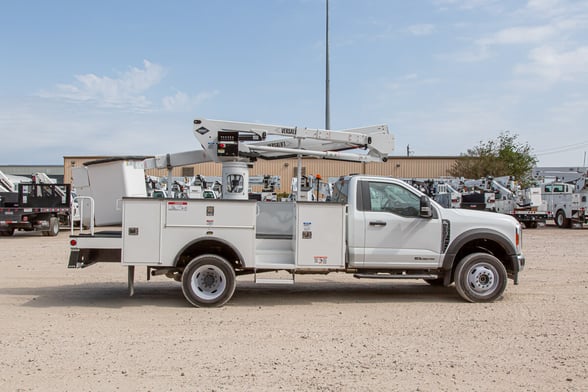

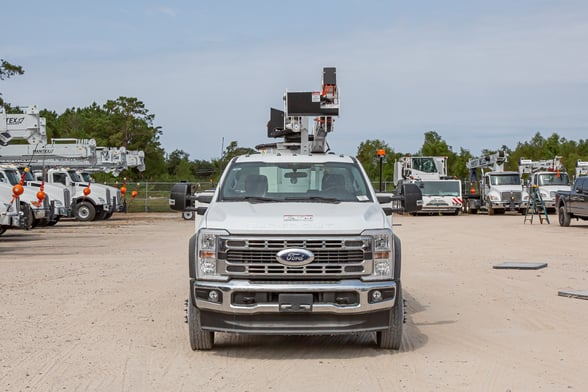

New Versalift SST-40-EIH on New Ford F-550

Features

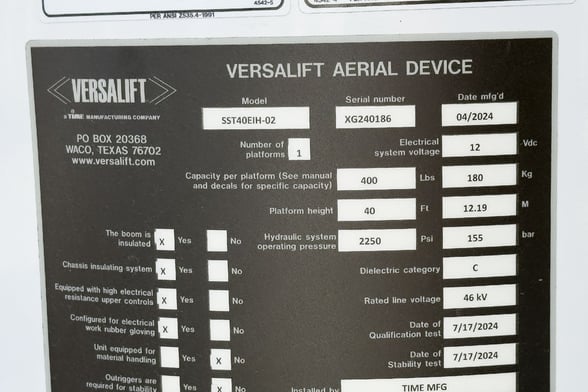

Product Overview Working Height: 45 ft (13.72 m) Height to Bottom of Platform: 40 ft (12.19 m) Horizontal Reach: 27.75 ft (8.23 m) Stowed Travel Height: 10.33 ft (3.05 m) Platform Capacity: 450 lbs (204.12 kg) Insulated or Non-insulated: Insulated Material Handling: No

Included Options

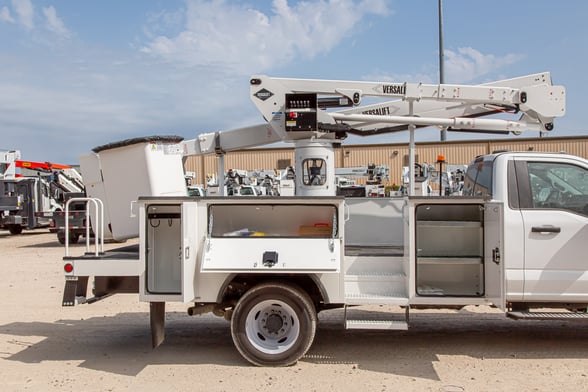

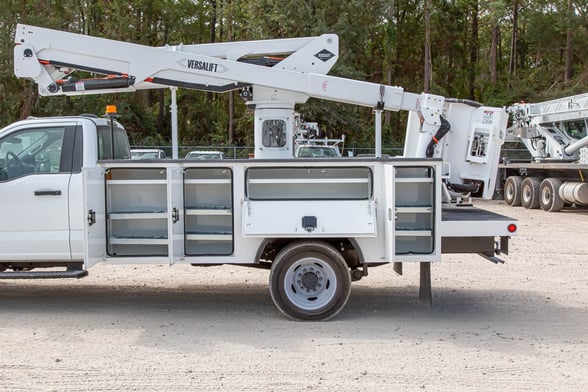

Steel Service Body: 132" Service Body 40 inches high X 94 inches wide. Body Dimensions: • 20 Inch compartment depth. • 54 Inch bed area. • 24 Inch top of floor to top of body. • 18 Inch horizontal compartment height. Body Materials: • 12 Ga Wheel Wells Covers. • 16 Ga. Galvanneal body materials. • 12 Ga. Hot rolled treadplate floor. • 12 Ga. Hot rolled treadplate compartment tops. Door Details: • Stainless Steel Automotive rotary type door latches • Latch Covers on All doors. • Stainless steel rod and socket type door hinges. • Chain stops on all doors. • Spring Retainers on Horizontal Doors • Double Panel Body Doors. Body Features: • Rubber rolled crown type fenders. • Master door lock system. • Automotive Bulb Type Weatherstripping. • Front bulk head - Bolt on • Shelving / Hooks installed on DUAL Uni-Strut for infinite adjustment. • Two (2) formed angle Mudflap brackets Streetside Compartmentation: 1st Vertical: • 30 Inches wide with Two (2) shelves each with adjustable dividers on 4" centers. 2nd Vertical: • 24 Inches wide with Two (2) shelves each with adjustable dividers on 4" centers. Horizontal: • 54 Inch open compartment. Rear Vertical: • 24 Inches wide with Two (2) shelves each with adjustable dividers on 4" centers. Hotstick Shelf: • 132 Inches long with rear dropdown access door. Curbside Compartmentation: 1st Vertical: • 30 Inches wide with Two (2) shelves each with adjustable dividers on 4" centers. 2nd Vertical: • 24 Inch wide gripstrut access steps to bed area. Horizontal: • 54 Inch open compartment. Rear Vertical: • 24 Inches wide with Five (5) fixed material hooks 1-3-1. Tailshelf: • Treadplate tailshelf 30 inches long X Full width of body x 6 inches high • 7-Lamp light bar installed at rear. Rear Lighting L.E.D in Tailshelf: • Rubber mounted recessed rear lighting kit with harness • Two (2) stop/tail/turn lights -Peterson Brand M826R-7 L.E.D. • Two (2) clear back up lights -Peterson Brand M826C-7 LED • Two (2) front clearance lights reflector style-Peterson brand M173A L.E.D • Two (2) side clearance lights reflector style-Peterson brand M173R L.E.D • Two (2) rear clearance lights reflector style -Peterson brand M173R L.E.D • Three (3) light center cluster reflector Style -Peterson brand M173R L.E.D • 7-Lamp light wiring harness. Belted Step: • One (1) Rubber Belted type step at side access. • One (1) Rubber Belted type step at rear of tailshelf -Curbside. Grab Handles: • Two (2) Bolt-On Type at side access of body. • Two (2) Pool type grab handles top of tailshelf. Paint: • Prime Paint Gray Interior • Rubberized protective undercoating. •Installation Details • Furnish and install mounting hardware, PTO, and pump • Install VERSALIFT SST-40-EIH • Furnish and install hydraulic diagnostic test ports • Furnish and install body and accessories • Furnish and install park brake interlock • Furnish and install slope indicators • Furnish and install backup alarm • Furnish and install an LED amber beacon streetside behind the cab • Furnish and install an ICC bumper • Furnish and install a pintle plate with D-ring each side • Furnish and install a combination pintle hook with 2-5/16” ball • Furnish and install a 7 prong trailer receptacle • Furnish and install mud flaps • Furnish and install travel height decal in the cab • Furnish and install a set of rear underframe torsion bars • Furnish and install a rubber bumper for the drop down hotstick door • Paint body to match cab and chassis • Paint treadplate floor and compartment tops with black no-skid • Furnish a 5lb fire extinguisher and a 3-piece triangle reflector kit • Test ride completed unit for 1 hour • Test and Certify per ANSI A92.2
