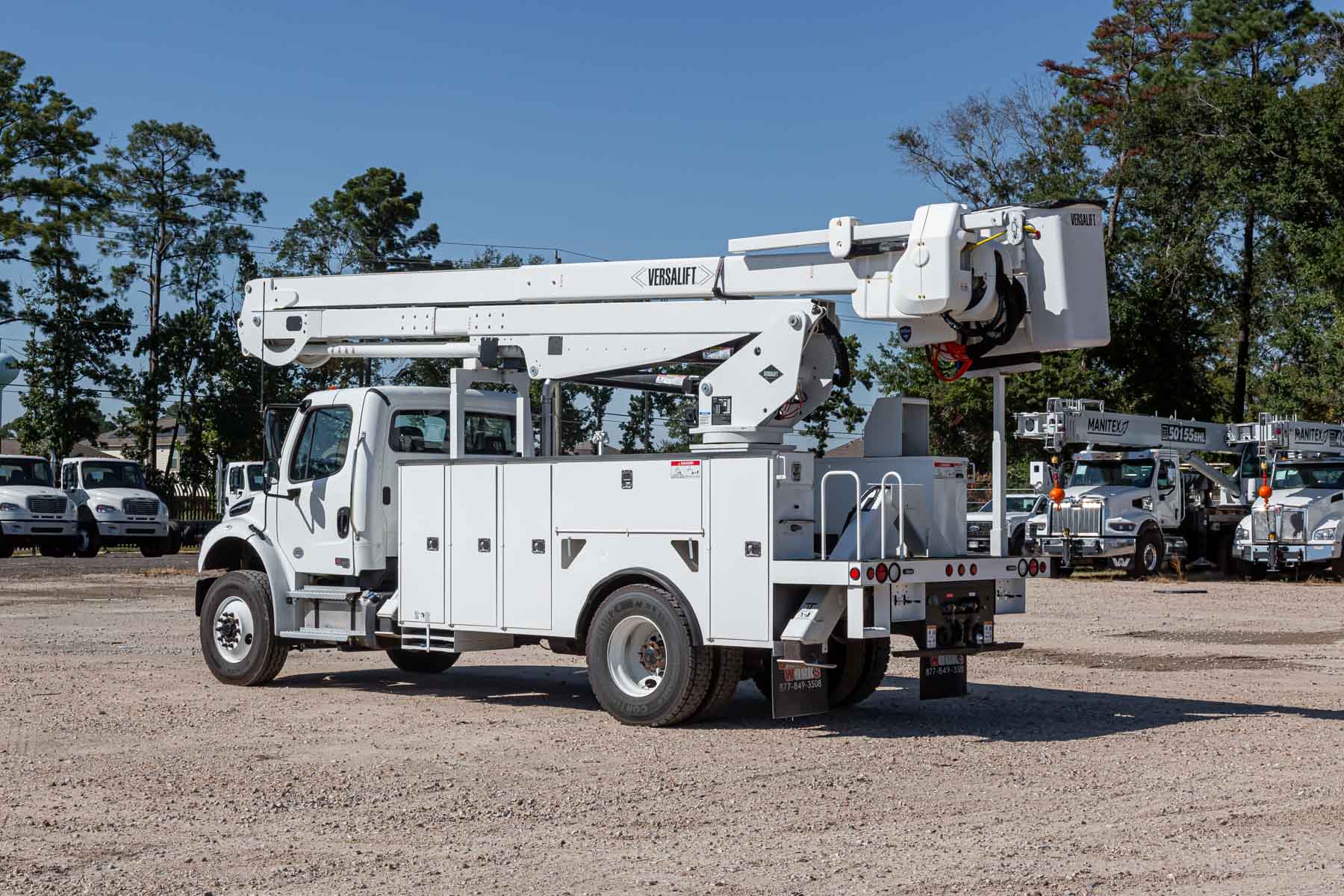

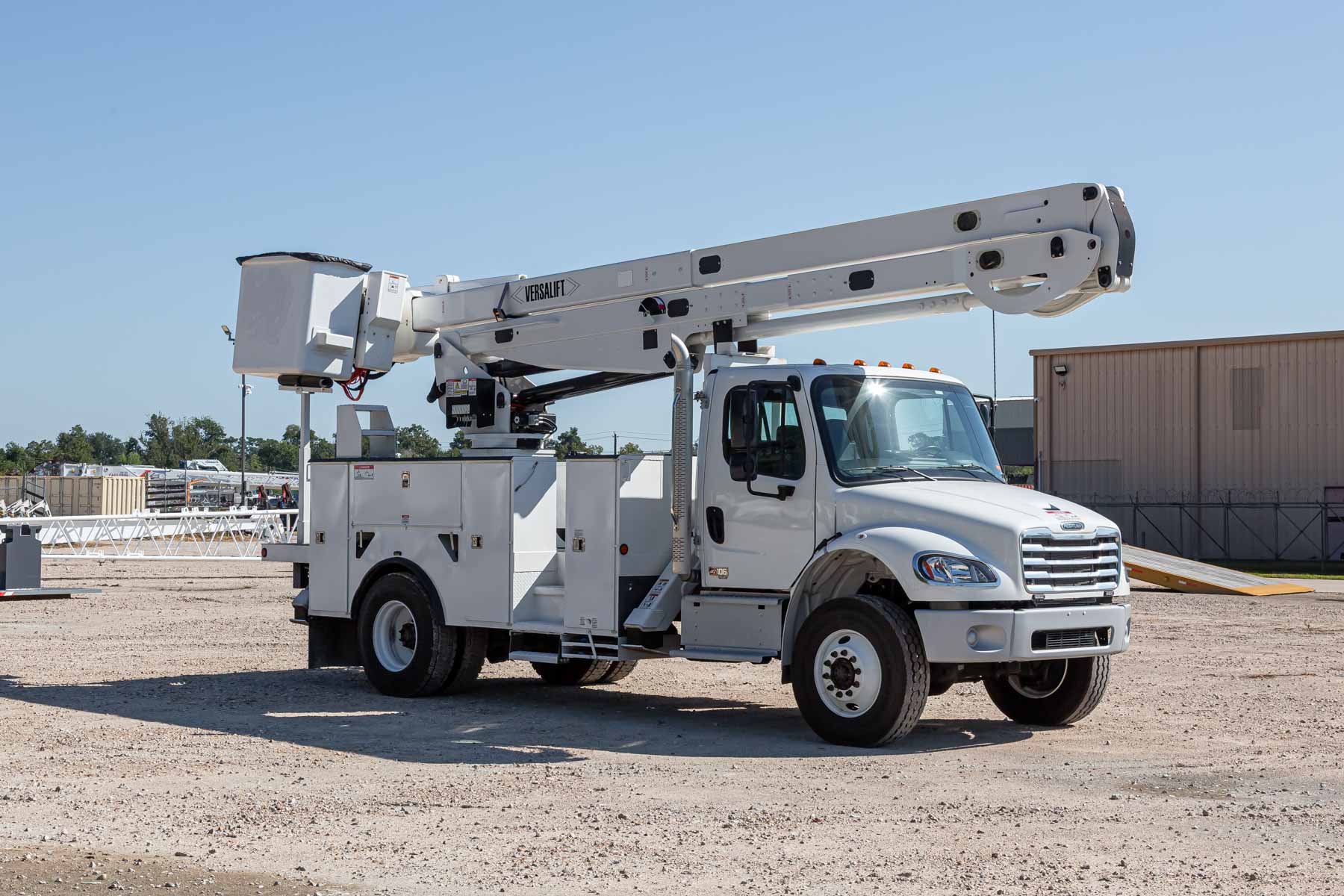

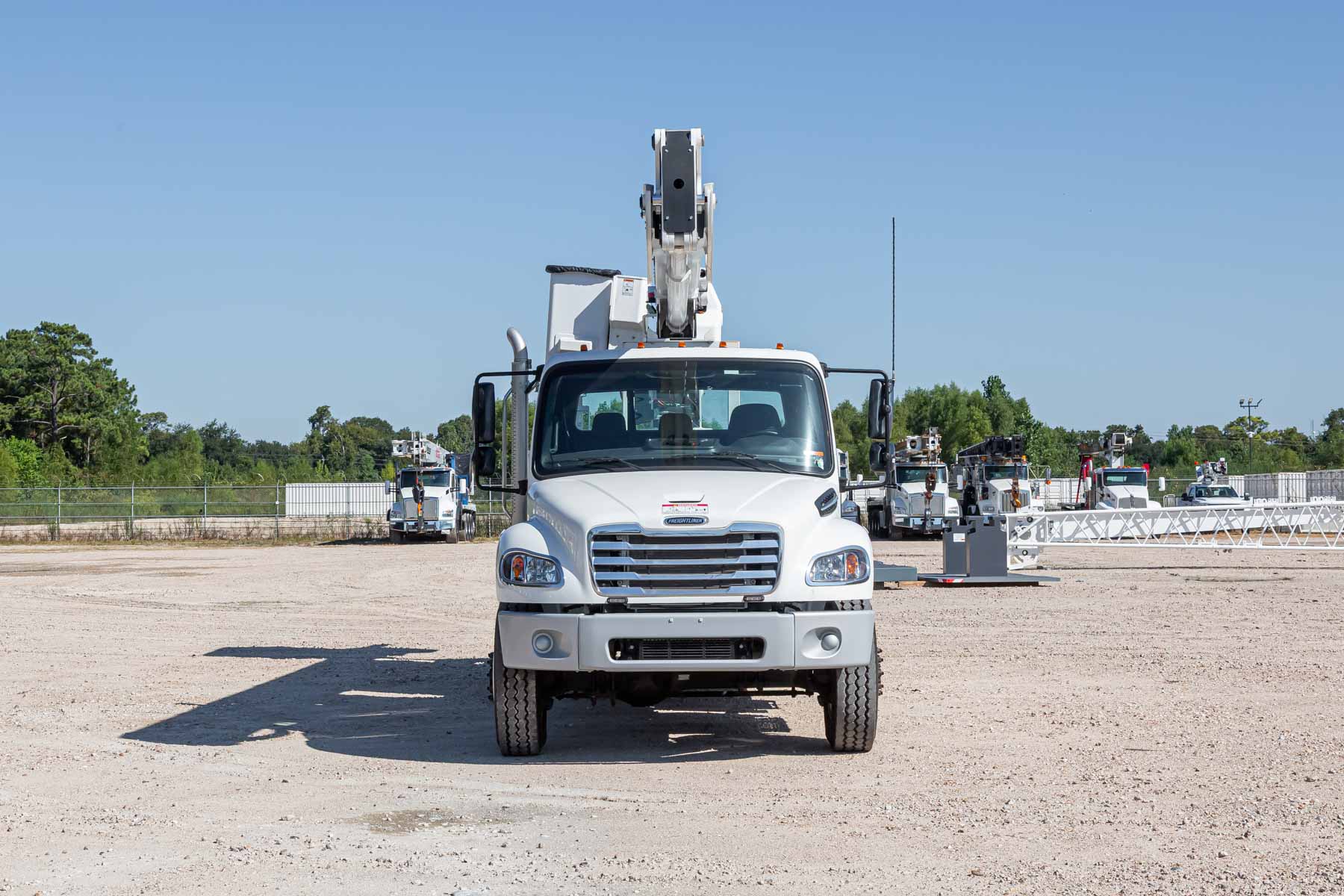

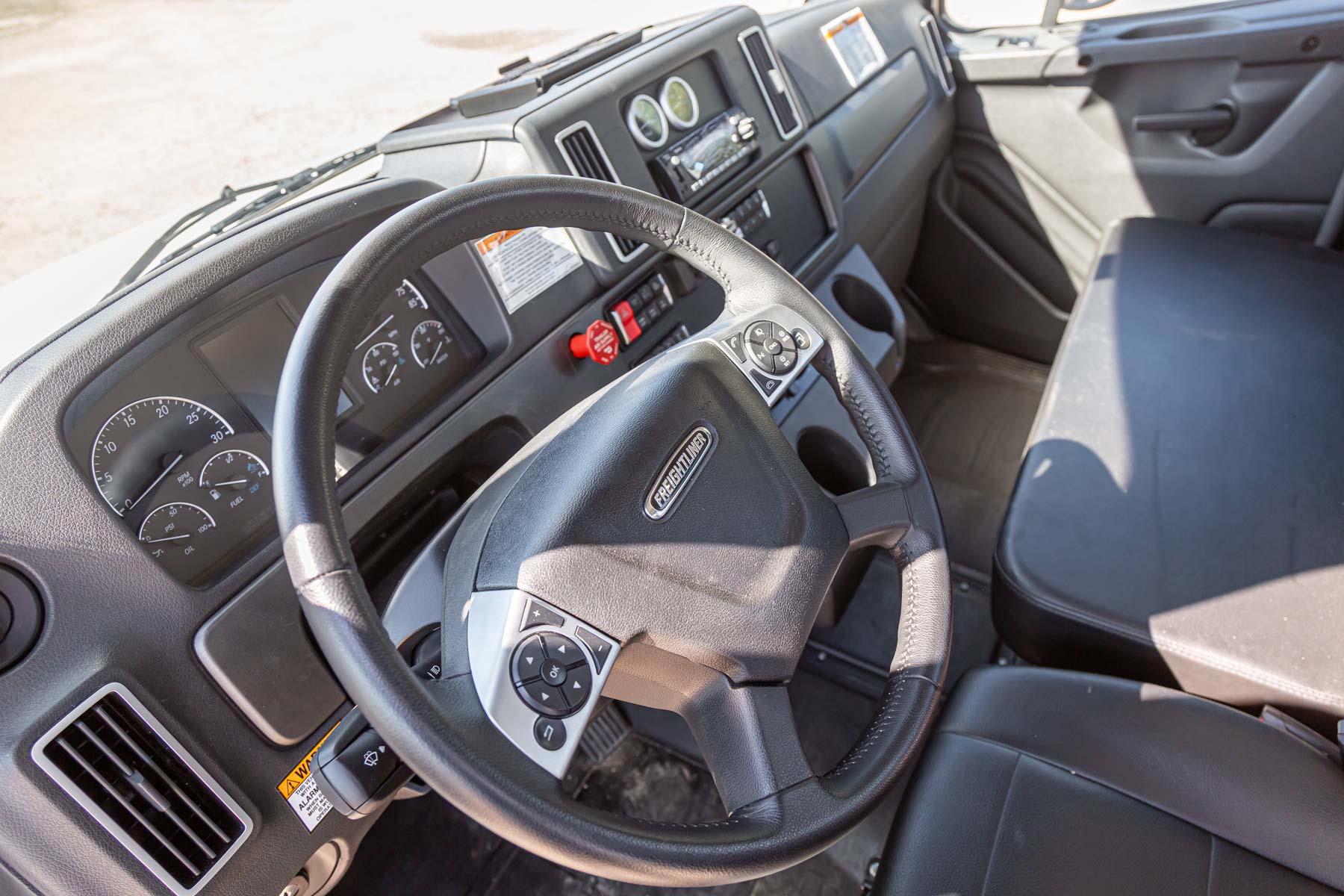

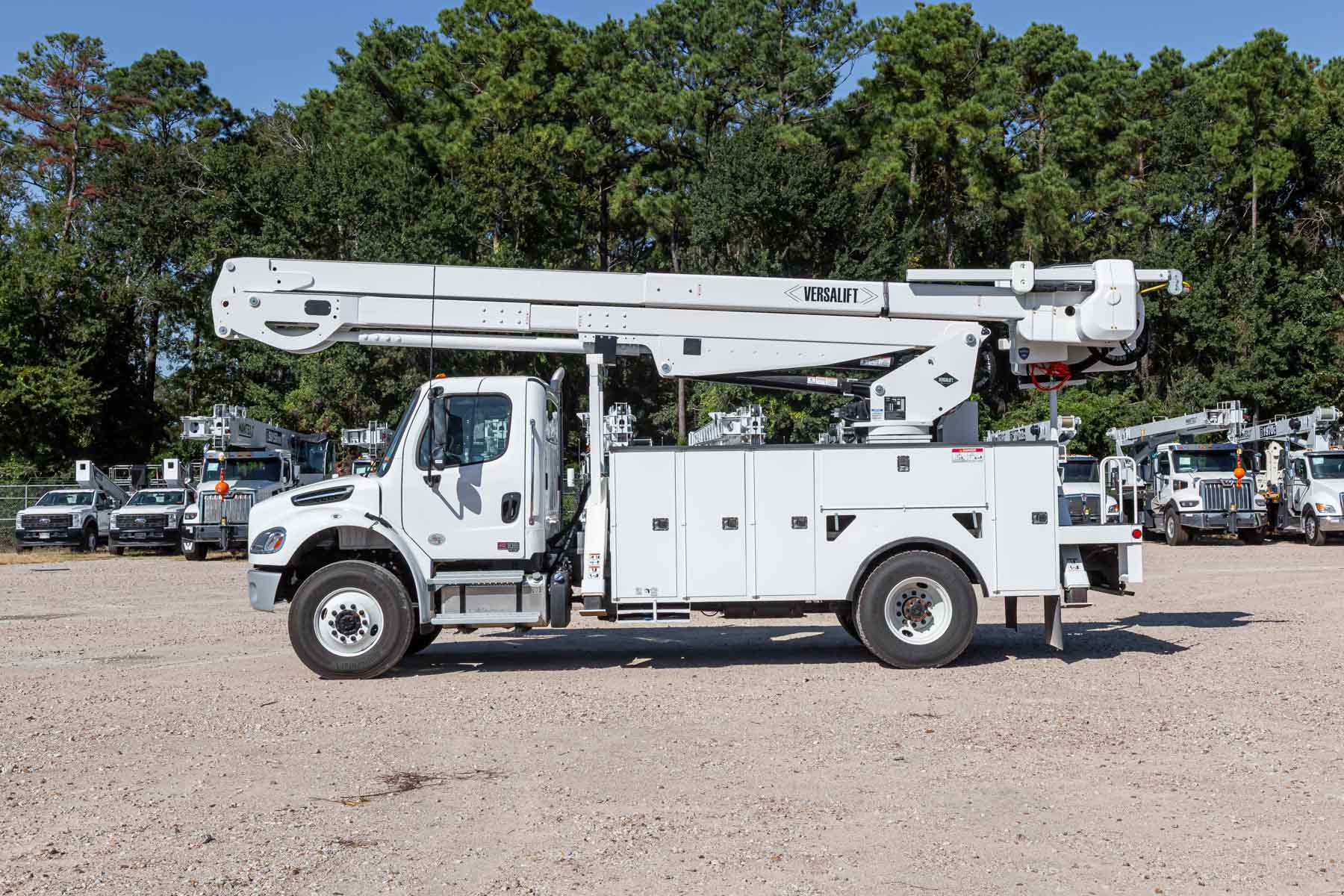

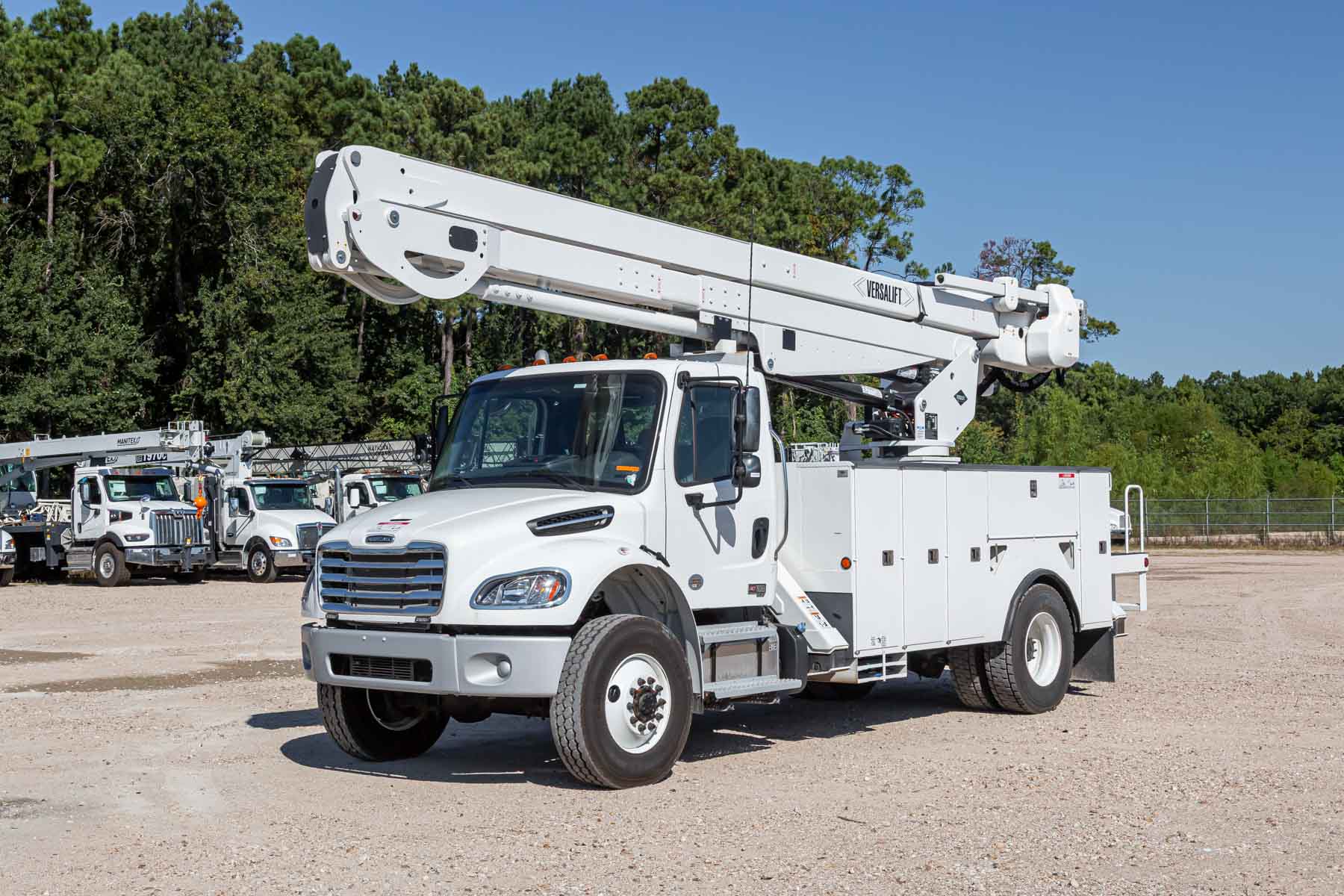

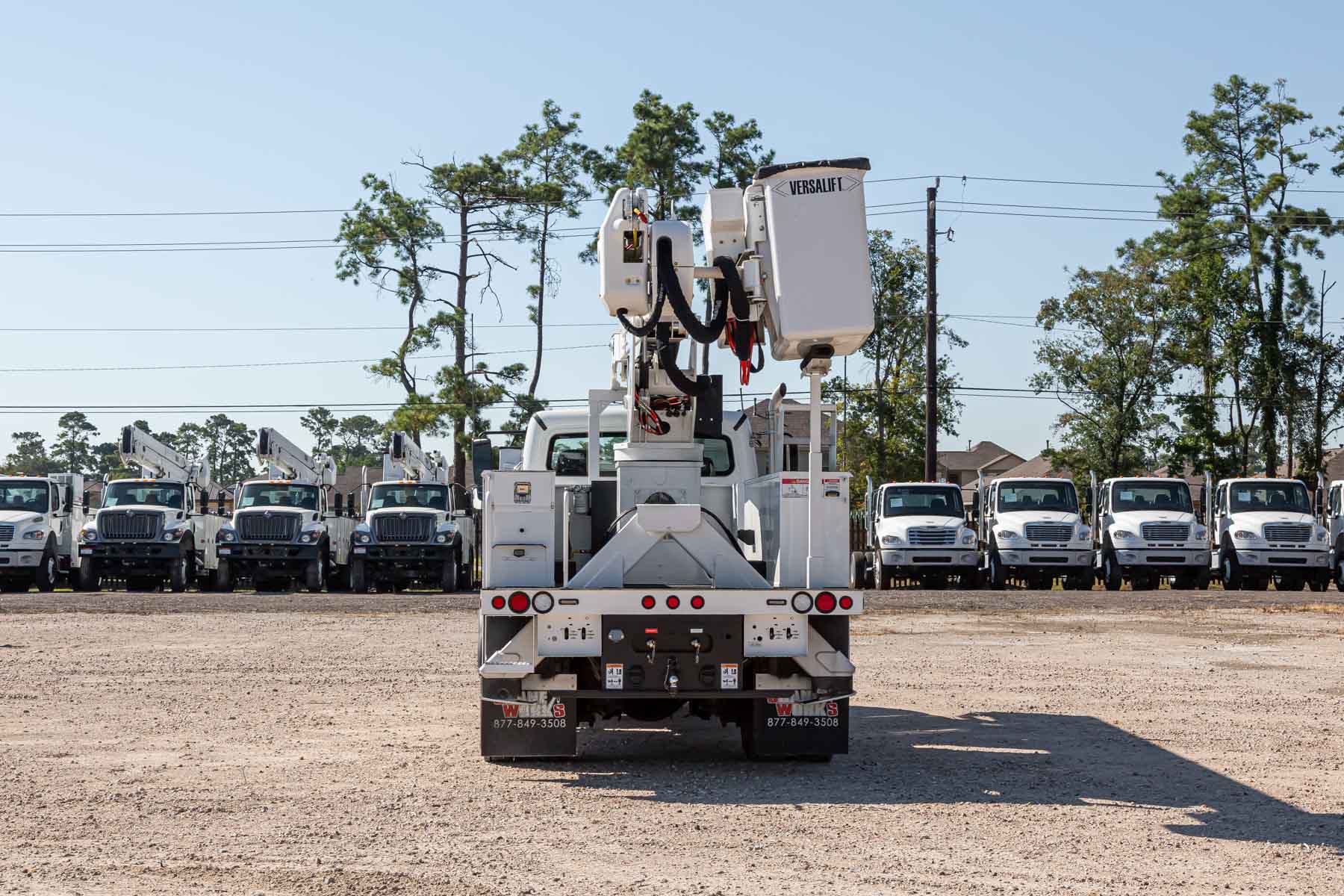

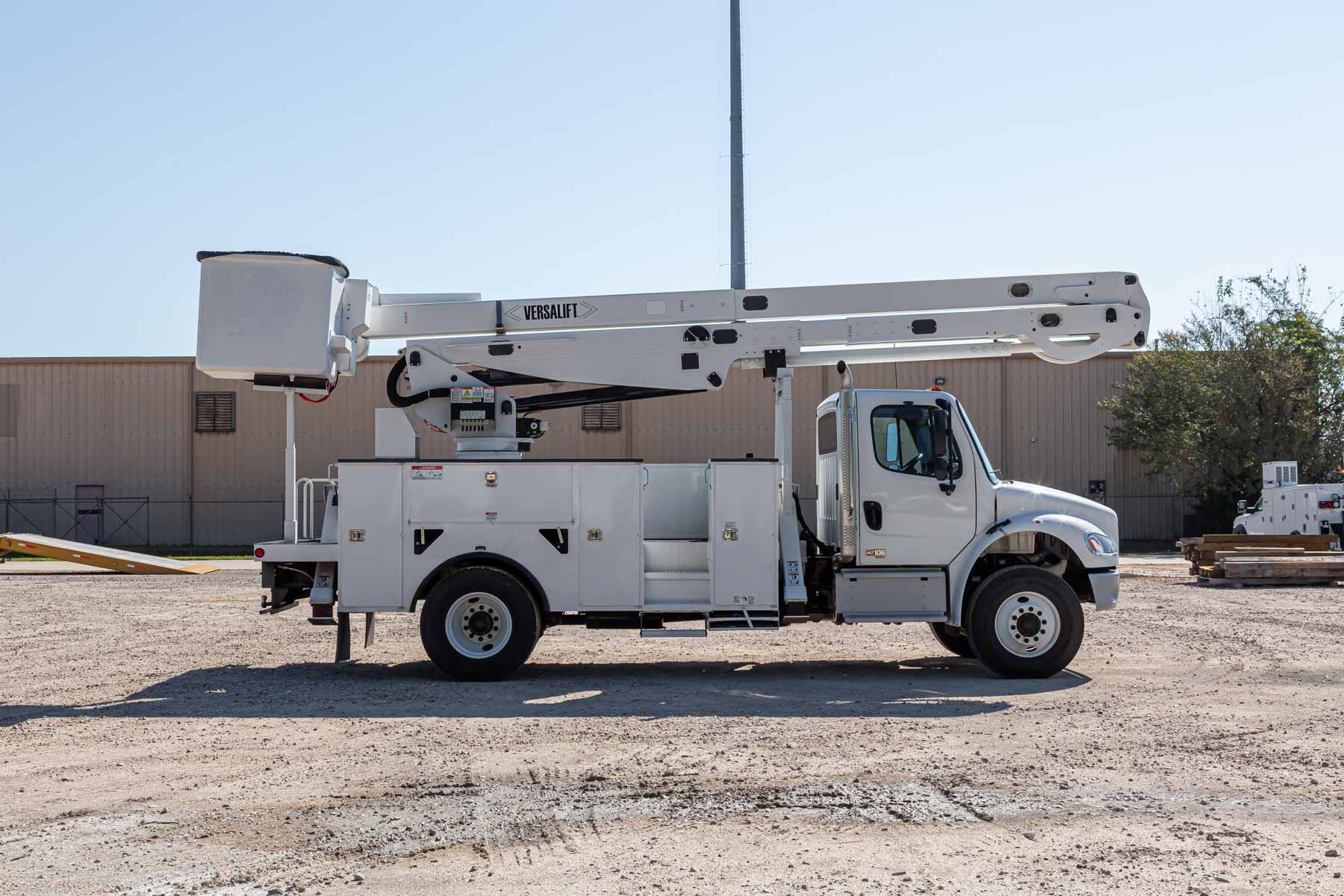

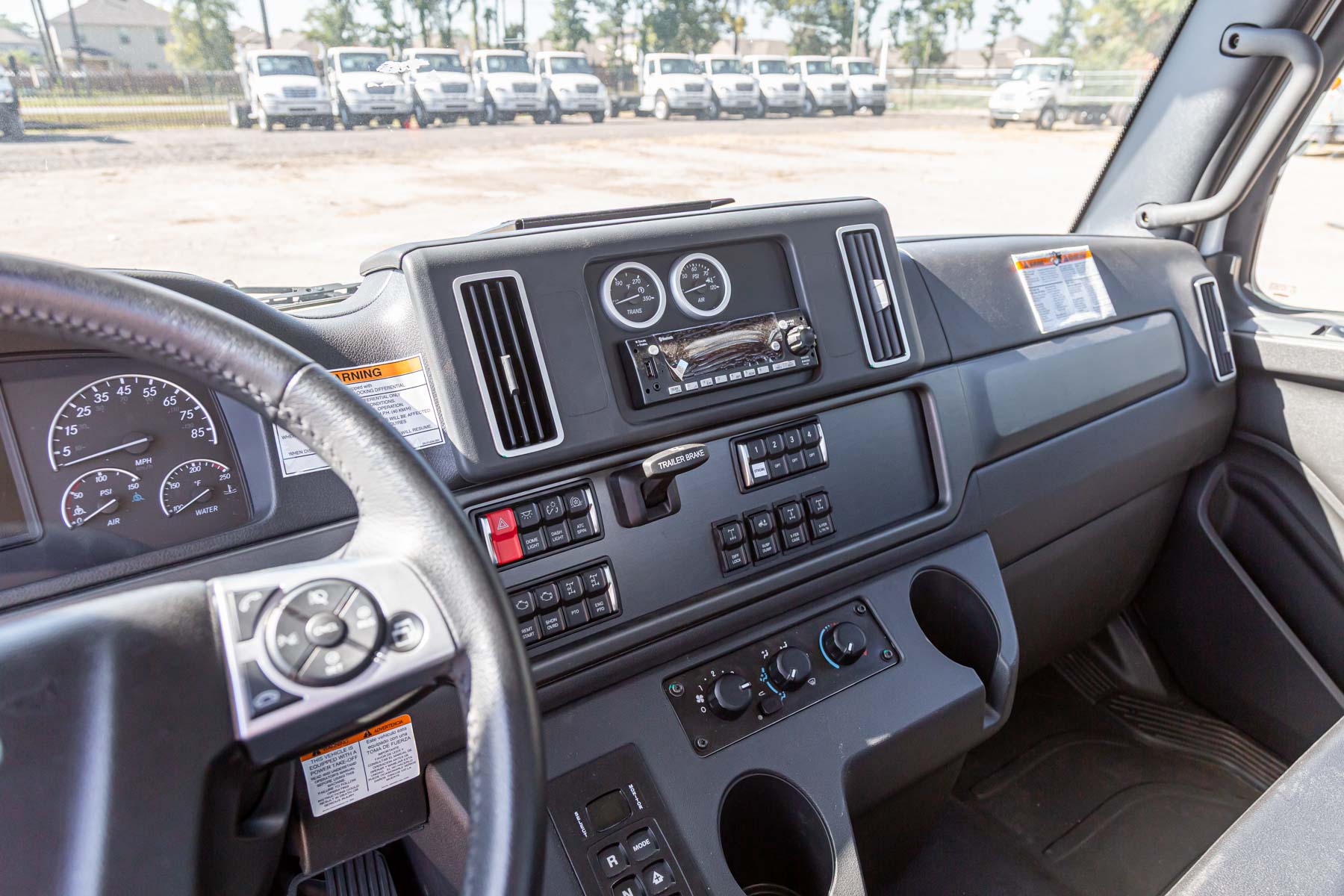

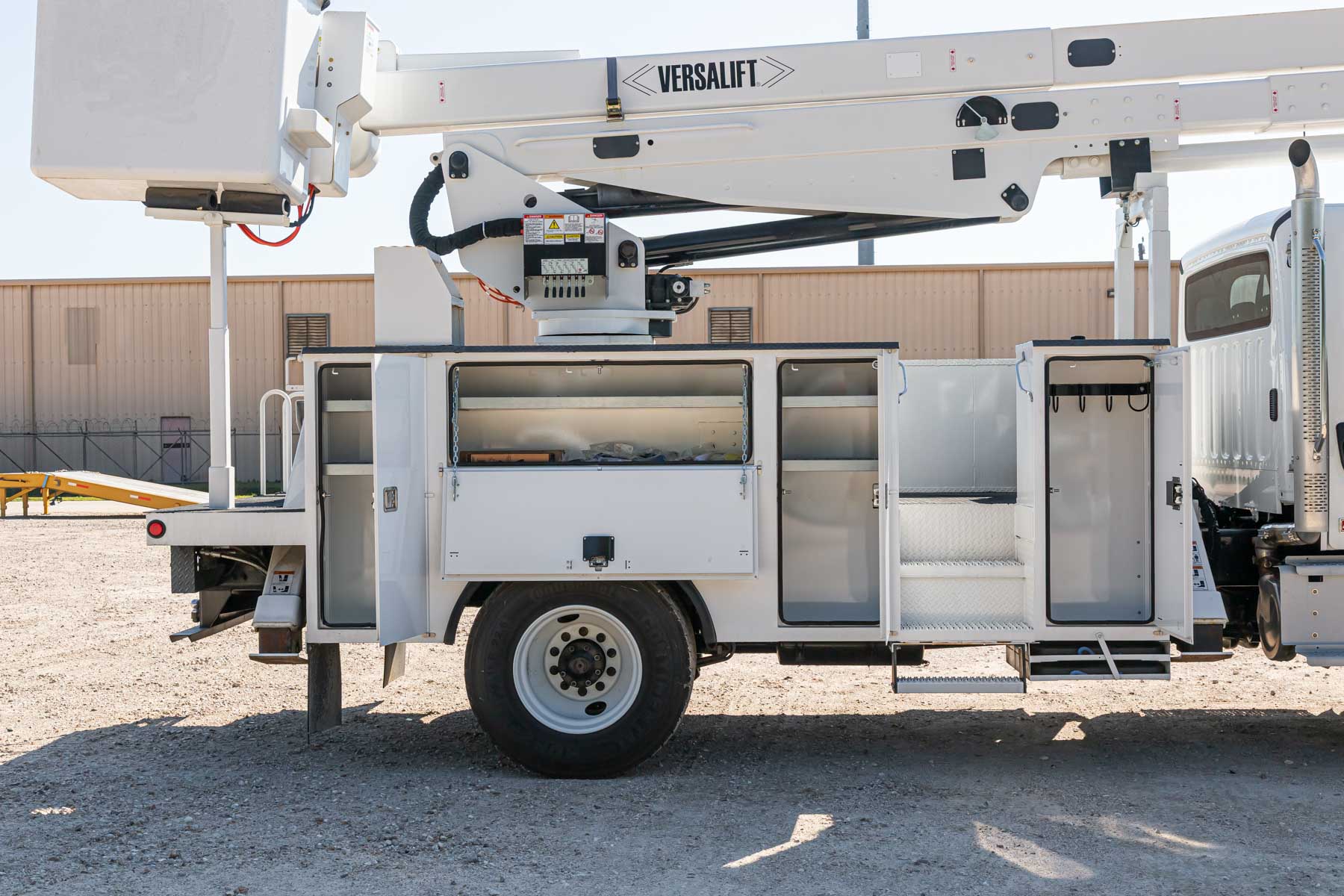

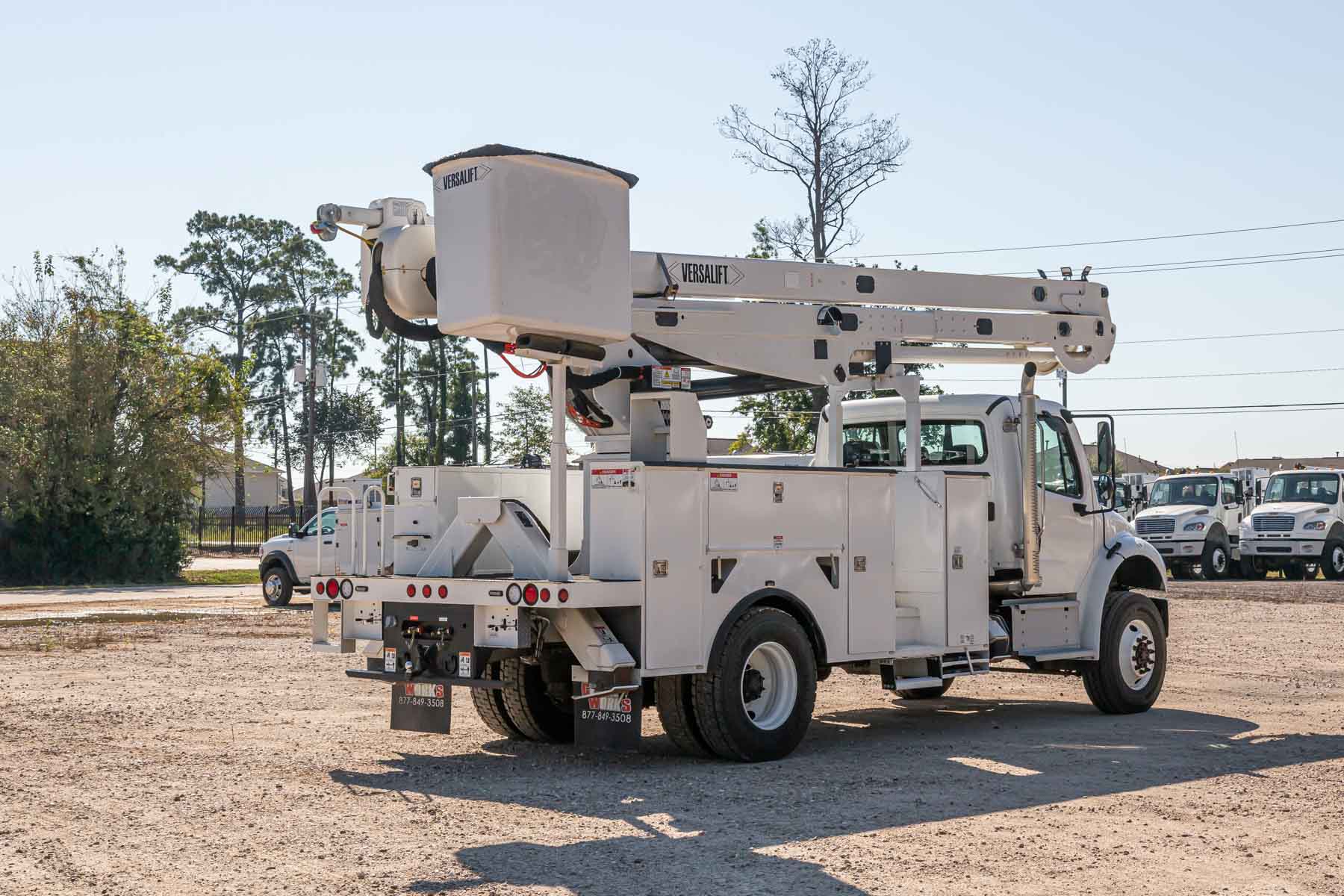

New Versalift VN-555-MHI on New Freightliner M2 106

Stock # BM-4247
On Order

Contact For Price/Rate

Request a quote

Features and Options

Features

Versalift VN-555-MHI Non-Overcenter Bucket Truck - Powerful Non-Overcenter Material Handler - Truguard® Safety System Standard - Simple Mechanical Linkage for Boom Compensation INDUSTRIES SERVED: Electric Power Distribution, Electric Utilities TYPE: Non-Overcenter HEIGHT RANGE: 45ft - 65ft MODEL SERIES: VN Product Overview - Working Height: 60.5 ft (18.4 m) - Height to Bottom of Platform: 55.5 ft (16.9 m) - Horizontal Reach: 42.8 ft (13 m) - Stowed Travel Height: 12.3 ft (3.74 m) - Platform Capacity: 700 lbs (318 kg) - Platform Rotation: 90 - Insulated or Non-insulated: Insulated - Material Handling: Yes SPECIFICATIONS HYDRAULIC SYSTEM Hydraulic Controls: Full Hydraulic Operating Pressure: 3000 psi (210 kg/cm²) Flow Rate: 12 gpm (45 lpm) Filtration: 10 micron return | 100 mesh suction System Type: Open Center Power Source: PTO Pump BOOM Upper Boom Articulation: 192 Lower Boom Articulation: 120 Upper Boom Insulation Gap: 108 in (2.74 m) Lower Boom Insulation Gap: 18 in (0.46 m) Lower Boom Lift Eye Capacity: 2500 lbs (1133.98 kg) Boom Rotation: Continuous VEHICLE REQUIREMENTS GVWR: 33,000 lbs (12700.52 kg) Cab to Axle (minimum): 108 in (2.59 m) MATERIAL HANDLING OPTIONS Jib & Winch Capacity: 2000 lbs (907.18 kg)

Included Options

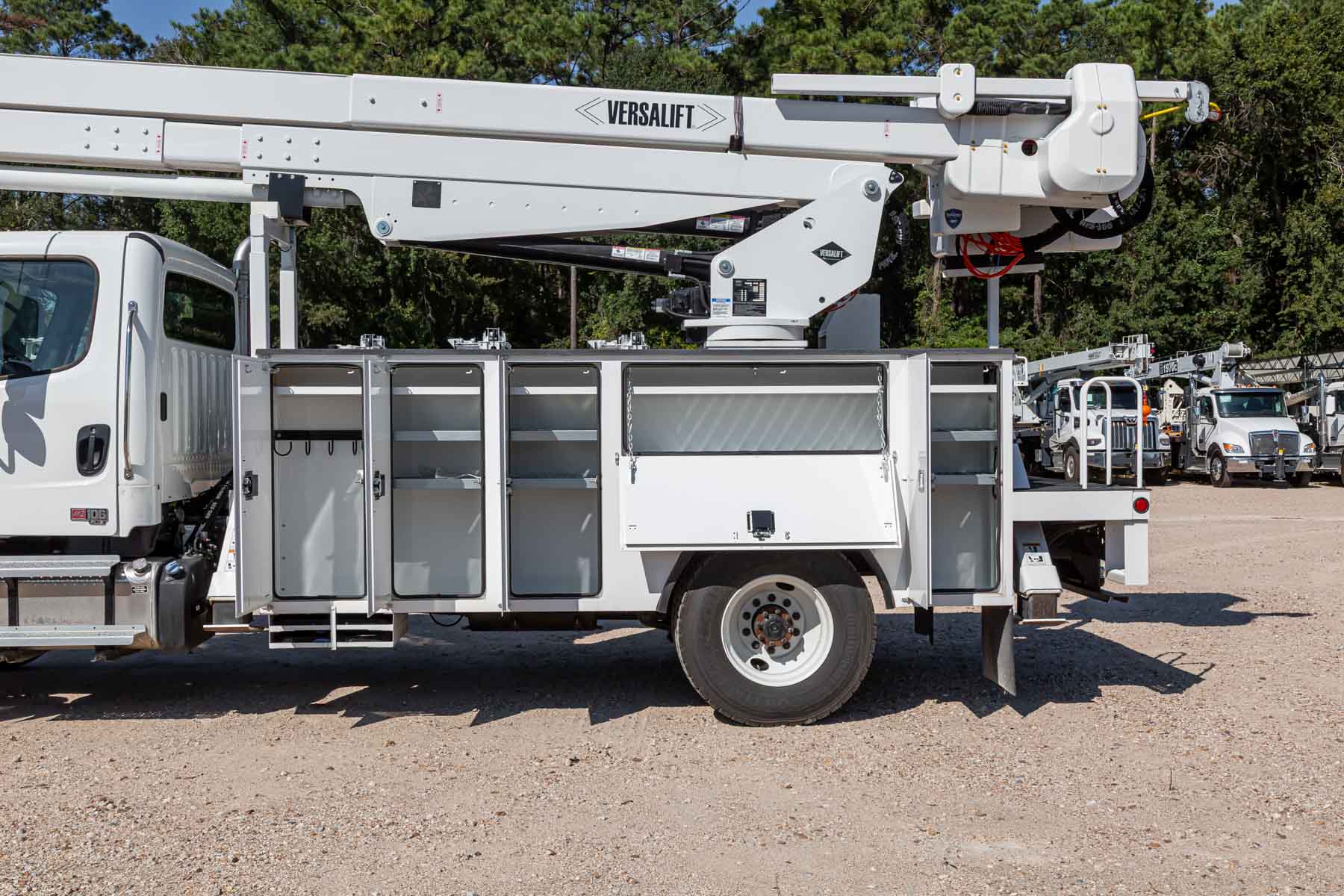

•Furnish and install mounting hardware, PTO, and pump • Install VERSALIFT VN-555-MHI • Furnish and install hydraulic diagnostic test ports • Furnish and install body and accessories • Furnish and install slope indicators • Furnish and install park brake interlock • Furnish and install backup alarm • Furnish and install a 4-corner LED amber strobe system • Furnish and install ICC rear bumper • Furnish and install a pintle plate with D-ring each side • Furnish and install combo pintle/hitch with 2 5/16” ball • Furnish and install a 7 prong trailer receptacle • Furnish and install mud flaps • Furnish and install travel height decal in the cab • Furnish and install a compartment top access step • Furnish and install a two-step platform access step • Furnish and install rubber bumper for hotstick door • Paint body to match chassis • Paint treadplate floor and compartment tops with black no-skid • Furnish four (4) 24” X 24” X 2” outrigger pads • Furnish two (2) rubber wheel chocks • Furnish fire extinguisher and 3-piece triangle reflector kit • Test ride completed unit for 1 hour • Test and Certify per ANSI A92.2

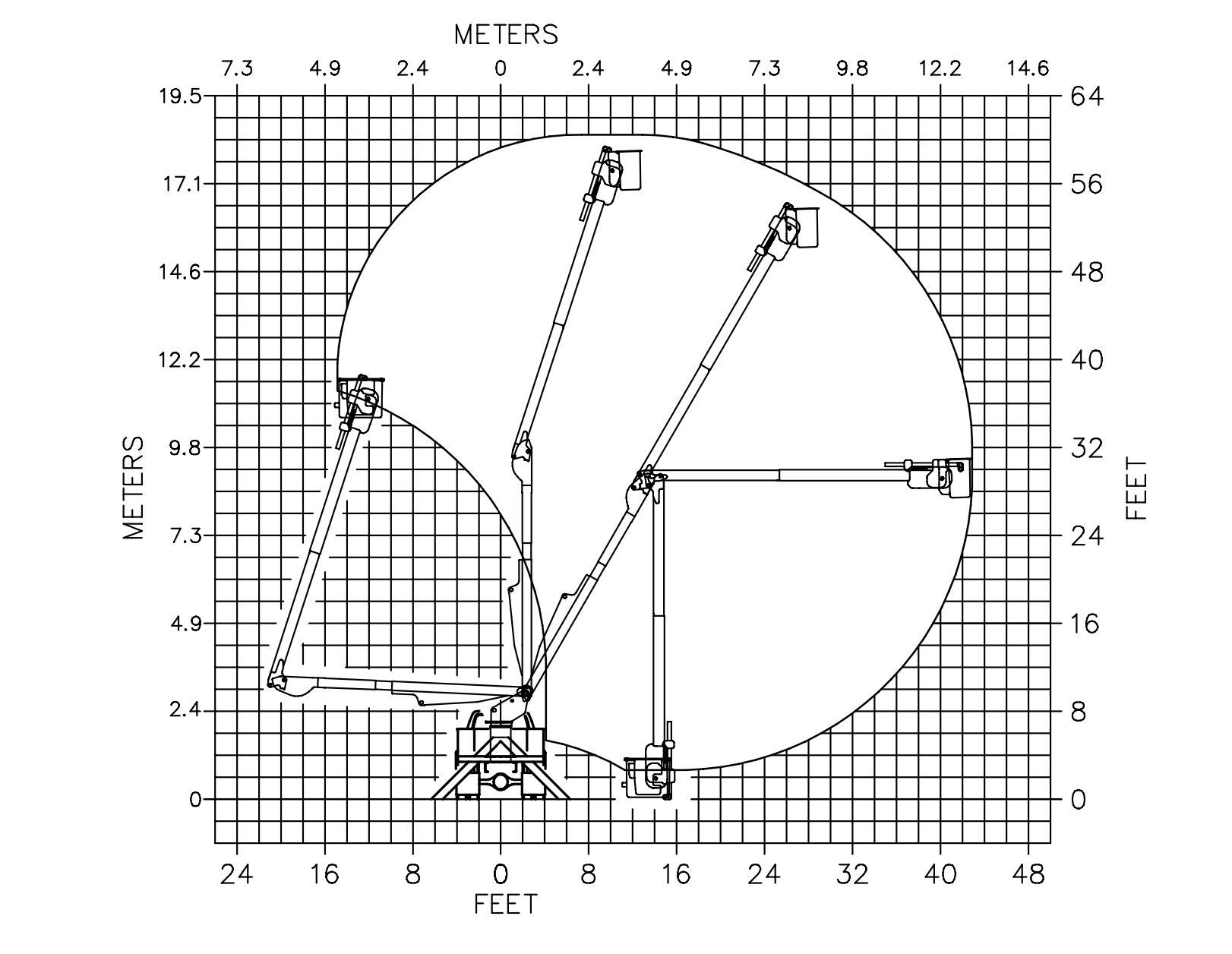

VIEW LOAD CHART

Product Specs

  • Location : Houston, TX
  • Ton-Meters : 0
  • Ton Rating: 0.35
  • Boom (ft) : 60
  • Type : Aerial Lifts
  • Engine : Cummins B6.7
  • Horsepower : 325

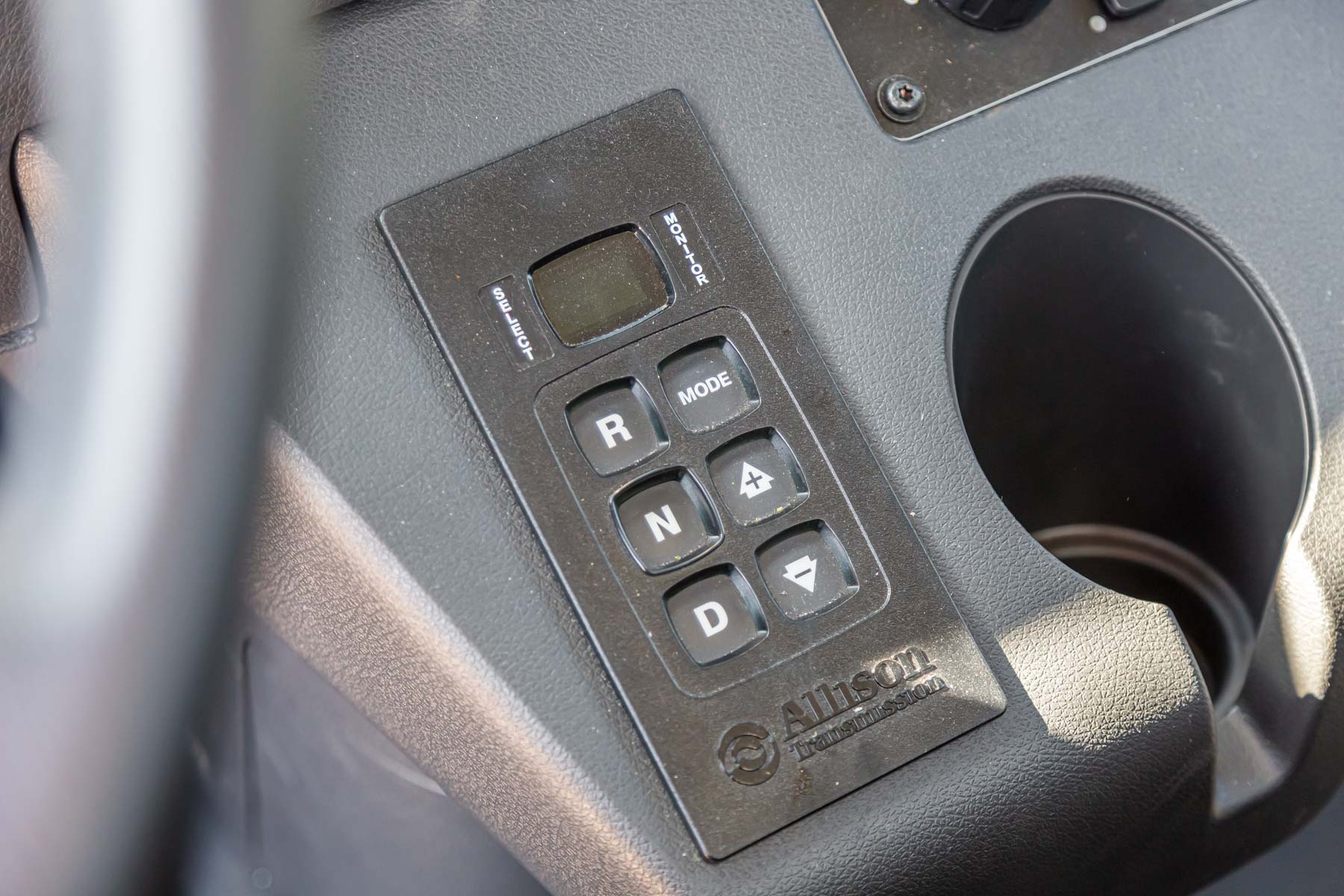

  • Transmission : Allison Automatic
  • Suspension : Air Ride
