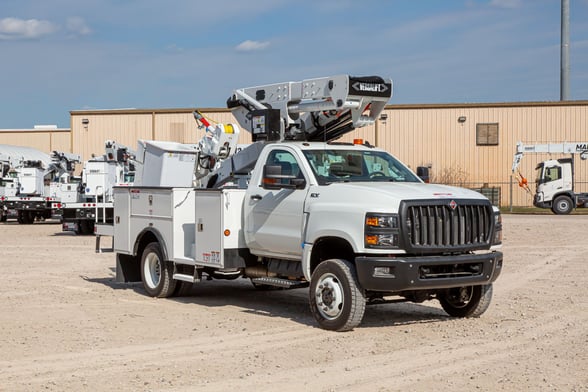

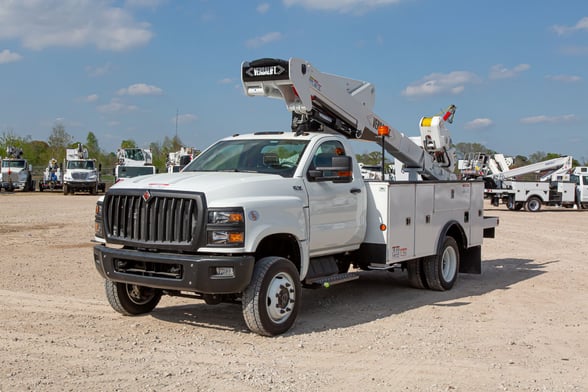

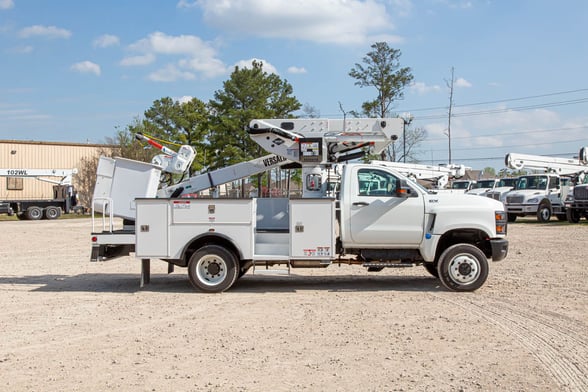

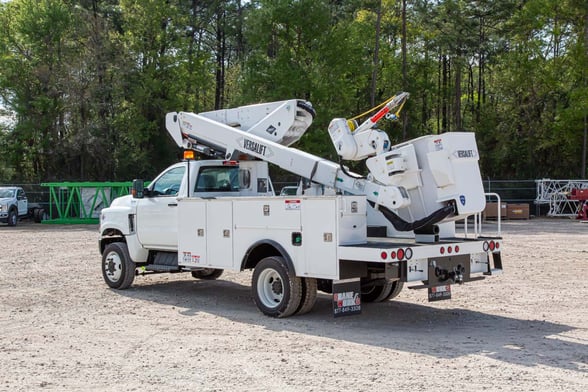

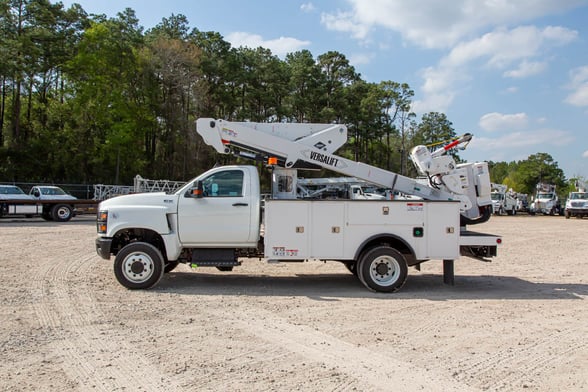

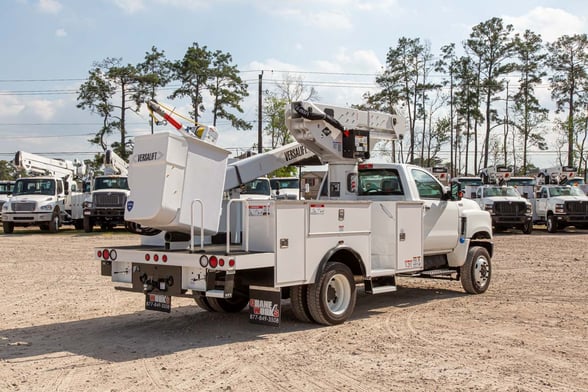

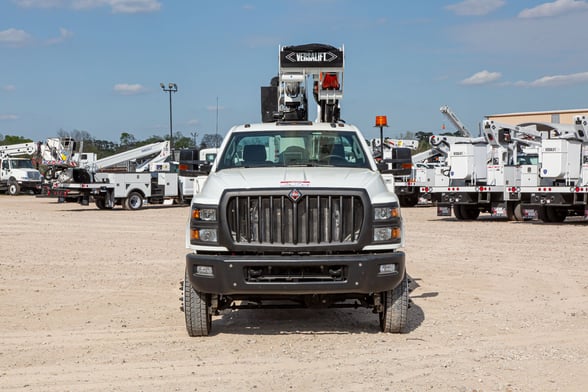

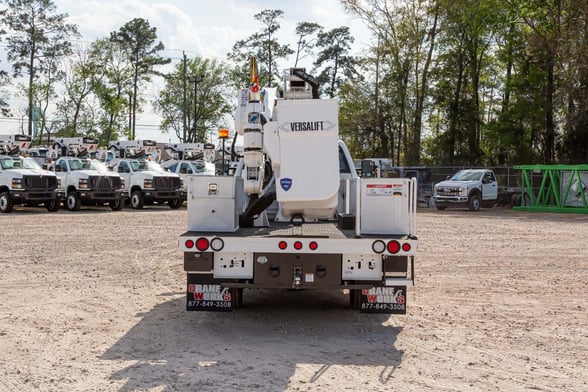

New Versalift VST-40-MHI on New International CV515

Product video

Features

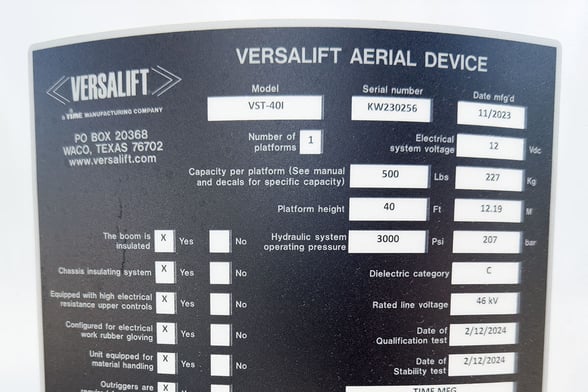

40 ft Insulated Articulated/Telescopic Material Handling Bucket Truck INDUSTRIES SERVED: Electric Power Distribution, Electric Utilities TYPE: Articulated Telescopic HEIGHT RANGE: 29ft - 45ft MODEL SERIES: VST PRODUCT OVERVIEW Working Height 45.33 ft (13.72 m) Height to Bottom of Platform 40.33 ft (12.19 m) Horizontal Reach 30.17 ft (9.14 m) Stowed Travel Height 10.5 ft (3.05 m) Platform Capacity 500 lbs (226.8 kg) Insulated or Non-insulated: Insulated Material Handling: Yes SPECIFICATIONS HYDRAULIC SYSTEM Hydraulic Controls Full Hydraulic Operating Pressure 3000 psi (210.92 kg/cm²) Flow Rate 6 gpm (22.71 lpm) Filtration10 micron return | 100 mesh suction System Type: Open Center Power Source: PTO Pump BOOM Lower Boom Articulation: 0 to +87° Inner/Outer Boom Articulation: -25° to +85° Inner Boom Extension 103 in (2.62 m) Upper Boom Insulation Gap 46 in (1.17 m) Lower Boom Insulation Gap 12 in (0.3 m) Lower Boom Lift Eye Capacity 1000 lbs (453.59 m) Boom Rotation: Continuous VEHICLE REQUIREMENTS GVWR 17500 lbs (7937.83 kg) Cab to Axle (minimum) 84 in (2.13 m) MATERIAL HANDLING OPTIONS Jib & Winch Capacity 1000 lbs (453.59 kg)

Included Options

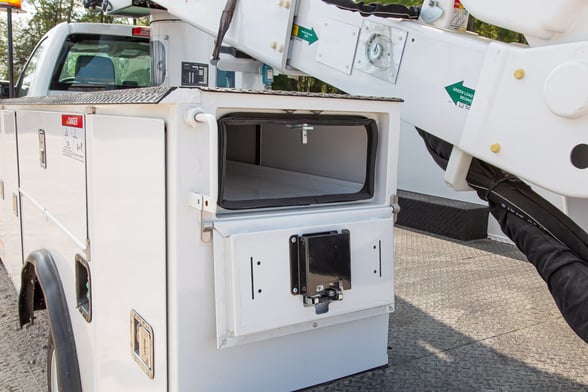

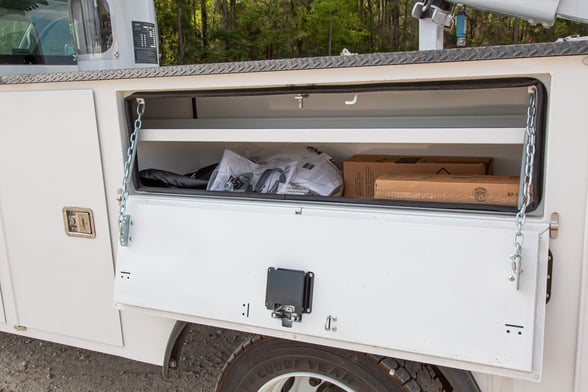

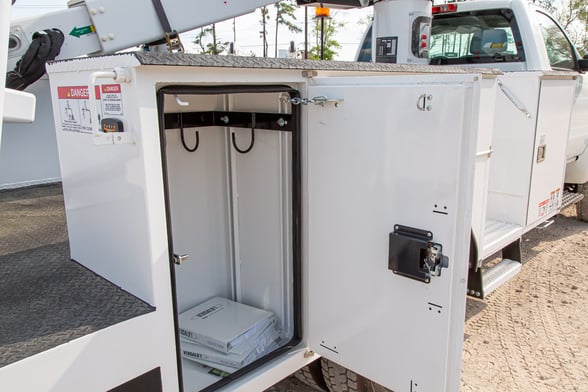

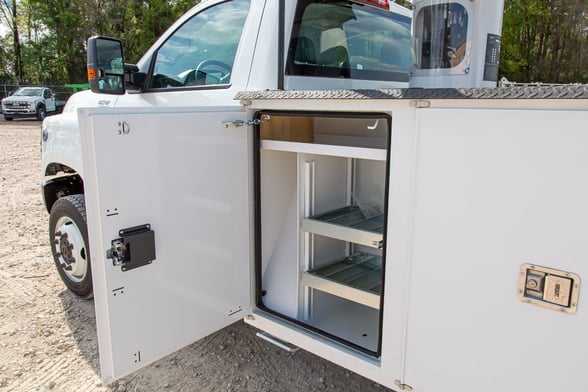

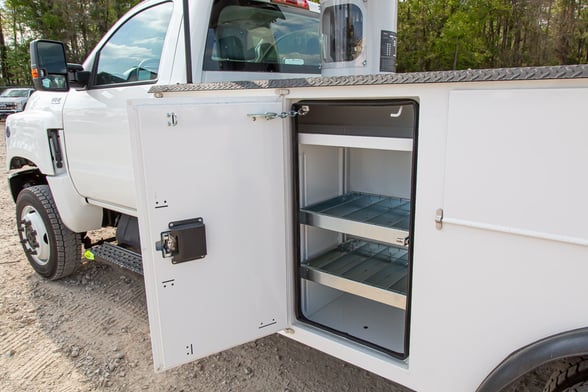

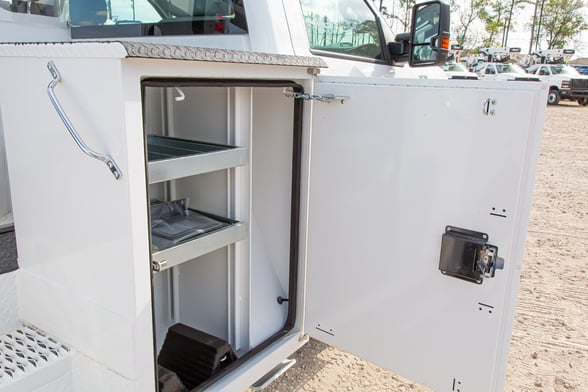

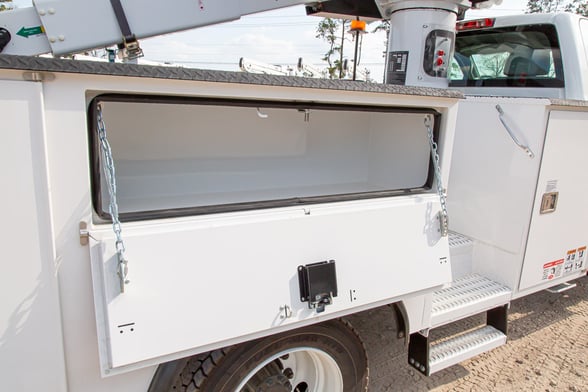

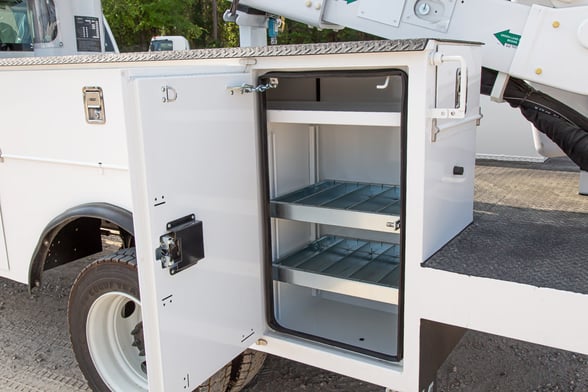

132” long x 40” high x 94” wide service body including the following: • 30 inch tread plate platform extension • LED lighting package installed in tail shelf with additional cutouts for strobe lights • Cable access step at rear and side access. • Two (2) chrome grab handles at side access and two (2) pool type grab handles for rear tail shelf. • Wheel chock storage with pendulum retainers and outrigger pad holders. • Master door lock hook and loop system on each door with two (2) spring loaded door handles. Excludes 1st vertical curbside • Grey Zolatone paint on the interior of compartments. • 40” High Street side compartments as follows • 1st Vertical: Two (2) adjustable shelves with dividers and cutout for outrigger • 2nd Vertical: Two (2) adjustable shelves with dividers • Horizontal: One (1) removable shelf with dividers • Rear Vertical: Two (2) adjustable shelves with dividers • Hot stick shelf with rear access door. • 40” High Curbside compartments as follows • 1st Vertical: Two (2) adjustable shelves with dividers and cutout for outrigger • 2nd Vertical: Gripstrut access steps to bed area with removable composite side gate. • Horizontal: One (1) adjustable shelf with dividers • Rear Vertical: Five (5) fixed material hooks 1-3-1 Installation to include the following: • Install VERSALIFT VST-40-I, mounting hardware, PTO and pump. • Install and paint service body and accessories. • Install combo pintle hitch, D rings and 7 prong trailer connector. • Install two (2) amber strobe lights in tail shelf and two (2) strobe lights in front grill. • Install grounding kit, park brake interlock system, back up alarm and mud flaps. • Supply outrigger pads, wheel chocks, fire extinguisher, and 3 piece triangle reflector kit. • Test ride completed unit for one (1) hour. Test and certify per ANSI A92.2
